Features

1. LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine uses U.S.TEO 1 / 2 color CCD cameras, the cross-line generator is the measuringaiming system.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the SDK -3000 data card.
3. LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine has various functions of data processing, display, input and output, particularly; the work piece straightening function is very useful.
4. LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping.
5. The marble base and column, high stability.

Functions:

1. LED Auto CAD High Accuracy Optical Measuring Devices can measure point,line, circle,arc,oval and rectangular to improve measurement accuracy with multi-point.
2. LED Auto CAD High Accuracy Optical Measuring Devices has many features such as: the combination of measuremnets,center structure,the intersection of structure,the midpoint of construction,line structure,a round structure and structural point of view.
3. Coordinate translation and coordinats straighten out is to make measurement more convenient and efficient,at the same time increase measurement efficiency.
4. Macros can measure the same parts faster and more convenient volumn and improve the measurement efficiency.
5. Measuring data directly output into Word,Excel,AutoCAD.That is more easy and clesr to analysis the test data.
6. Record users' program,editing and execute command.

optical measuring devices

optical measuring equipment

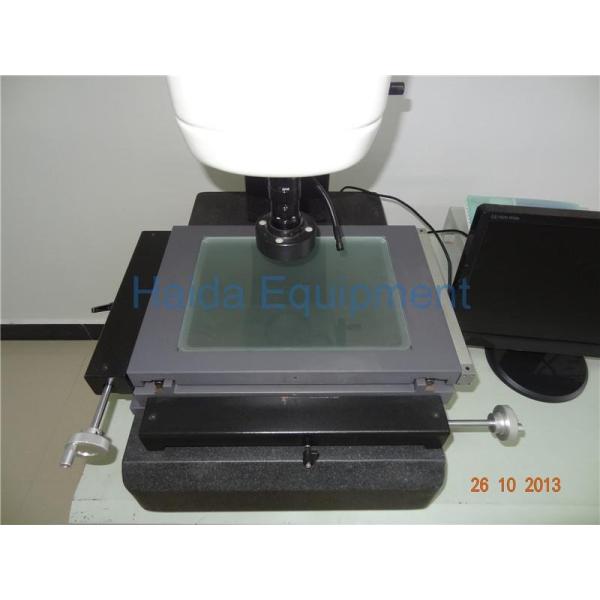

LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine Images
